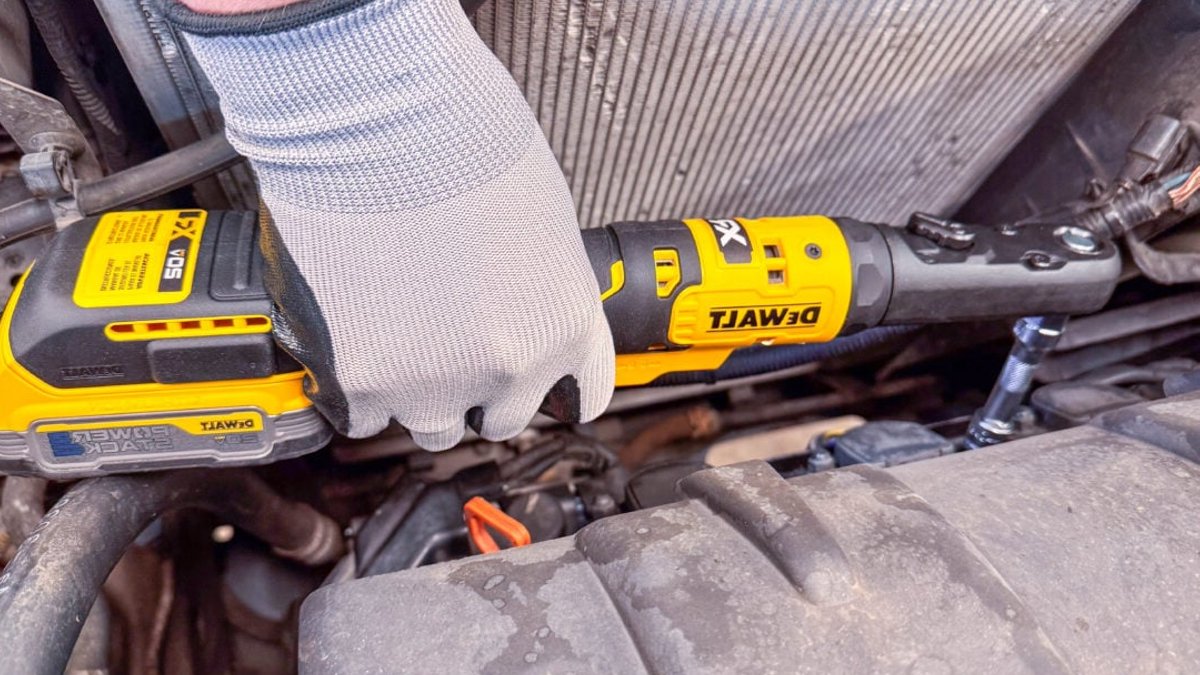

DeWalt’s new 20V Max XR sealed‑head ratchet, model DCF510, aims to give automotive technicians a cordless tool that rivals the performance of traditional impact ratchets while adding durability for tough shop conditions.
Power and performance compared to rivals
The DCF510 is built around a brushless motor that reaches 300 RPM and delivers 75 ft‑lbs of torque. In contrast, DeWalt’s earlier 20V Max Atomic DCF513 tops out at 250 RPM with 70 ft‑lbs, while Milwaukee’s 3054 model offers 80 ft‑lbs but only 300 RPM. The DeWalt unit is priced at $379 in a complete kit that includes a 1.7 Ah PowerStack battery, charger and storage bag, versus $309 for the DCF513 and $329 for the Milwaukee counterpart.
During testing, a bolt‑break rig using eight 1½‑inch truck lug nuts was tightened to 55 ft‑lbs. The DCF510 broke all eight nuts without issue, whereas the Milwaukee 3053 managed only two before stalling. The slight torque edge appears to give DeWalt a measurable advantage in this scenario, even though the power ratings are close.
Related: Makita Sets New Brightness Record
Design features and ergonomics
Weighing 2.6 lb bare and 3.3 lb with the 1.7 Ah battery, the ratchet measures about 15 in from tip to tail. Its balance feels solid, and the rubber‑overmolded grip helps when hands are covered in oil or grease. The tool’s depth, however, reaches 1.5 in with a 3/8‑in drive and 1.7 in with a 1/2‑in drive, a bit deeper than the 1.1‑in and 1.5‑in depths of comparable manual ratchets.
It feels solid.
The interchangeable anvil system lets users switch between 3/8‑in and 1/2‑in drives in seconds without tools. A silver button on the back releases a pin detent, allowing the anvil to pop out and be replaced. This quick changeover is useful for mechanics who need both sizes on the same job.
Related: Pro Tool Reviews Tests Reciprocating Saws Method
One practical benefit is the sealed‑head design. By keeping dust, grease and debris out of the ratcheting mechanism, the tool promises longer service life in environments where contaminants are common. While no tool is completely maintenance‑free, this sealing reduces the frequency of internal cleaning.
For those already using DeWalt’s 20V battery platform, the DCF510 fits neatly into existing power‑tool inventories, reducing the need for multiple batteries and chargers.
From a broader perspective, the shift toward cordless ratchets reflects a growing demand for mobility on the shop floor. As battery technology improves, tools that once required a cord or a heavy impact driver can now be powered by compact lithium‑ion packs, offering comparable torque while eliminating the inconvenience of hoses and cords. This trend encourages manufacturers to integrate features like sealed heads and interchangeable drives, which address the specific challenges of automotive work.
